Connecting points with lines

S.Mustonen, Survo Users' Guide (1992), pp. 261-263
Connecting points with lines

Edit field:

   1 *
   2 *  *GLOBAL*
   3 *SIZE=900,200  XSCALE=0(1)10 YSCALE=0,5 XLABEL= YLABEL=
   4 *POINT=3 PEN=[Swiss(8)] YDIV=1,2,1  TICKLENGTH=3
   5 *DATA K:(X,Y) 1,1 2,4 3,2 4,4 5,1 6,4 7,2 8,2 9,3 END
   6 *
   7 */ACTIVATE +
   8 *........................................................................

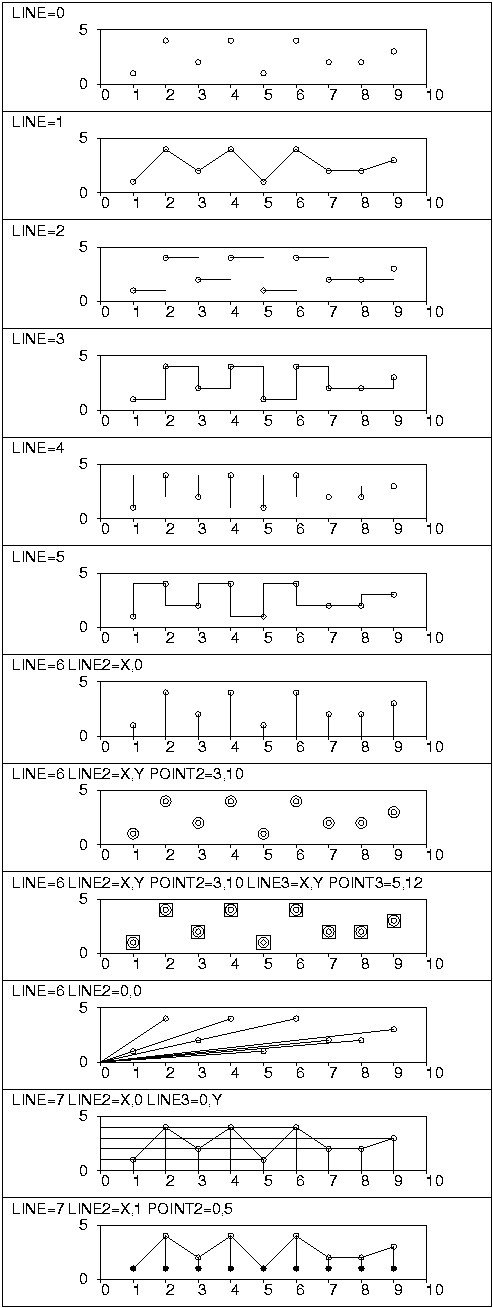

   9 +PLOT K,X,Y / LINE=0 HEADER=LINE=0           DEVICE=PS,L0.PS
  10 +PLOT K,X,Y / LINE=1 HEADER=LINE=1           DEVICE=PS,L1.PS
  11 +PLOT K,X,Y / LINE=2 HEADER=LINE=2           DEVICE=PS,L2.PS
  12 +PLOT K,X,Y / LINE=3 HEADER=LINE=3           DEVICE=PS,L3.PS
  13 +PLOT K,X,Y / LINE=4 HEADER=LINE=4           DEVICE=PS,L4.PS
  14 +PLOT K,X,Y / LINE=5 HEADER=LINE=5           DEVICE=PS,L5.PS
  15 *........................................................................
  16 +PLOT K,X,Y / LINE=6 LINE2=X,0   HEADER=LINE=6_LINE2=X;0 DEVICE=PS,L61.PS
  17 *........................................................................
  18 +PLOT K,X,Y / LINE=6 LINE2=X,Y POINT2=3,10
  19 *             HEADER=LINE=6_LINE2=X;Y_POINT2=3;10        DEVICE=PS,L62.PS
  20 *........................................................................
  21 +PLOT K,X,Y / LINE=6 LINE2=X,Y POINT2=3,10 LINE3=X,Y POINT3=5,12
  22 *                                                        DEVICE=PS,L63.PS
  23 *             HEADER=LINE=6_LINE2=X;Y_POINT2=3;10_LINE3=X;Y_POINT3=5;12
  24 *........................................................................
  25 +PLOT K,X,Y / LINE=6 LINE2=0,0
  26 *             HEADER=LINE=6_LINE2=0;0                    DEVICE=PS,L64.PS
  27 *........................................................................
  28 +PLOT K,X,Y / LINE=7 LINE2=X,0 LINE3=0,Y
  29 *             HEADER=LINE=7_LINE2=X;0_LINE3=0;Y          DEVICE=PS,L71.PS
  30 *........................................................................
  31 +PLOT K,X,Y / LINE=7 LINE2=X,1 POINT2=0,5
  32 *             HEADER=LINE=7_LINE2=X;1_POINT2=0;5         DEVICE=PS,L72.PS
  33 *........................................................................
  34 +PRINT CUR+1,E TO EX.PS
  35 % 190
  36 - picture L0.PS,*+132,*
  37 % 200
  38 - picture L1.PS,*+132,*
  39 % 200
  40 - picture L2.PS,*+132,*
  41 % 200
  42 - picture L3.PS,*+132,*
  43 % 200
  44 - picture L4.PS,*+132,*
  45 % 200
  46 - picture L5.PS,*+132,*
  47 % 200
  48 - picture L61.PS,*+132,*
  49 % 200
  50 - picture L62.PS,*+132,*
  51 % 200
  52 - picture L63.PS,*+132,*
  53 % 200
  54 - picture L64.PS,*+132,*
  55 % 200
  56 - picture L71.PS,*+132,*
  57 % 200
  58 - picture L72.PS,*+132,*
  59 E
  60 *
