Environment for creative processing of text and numerical data

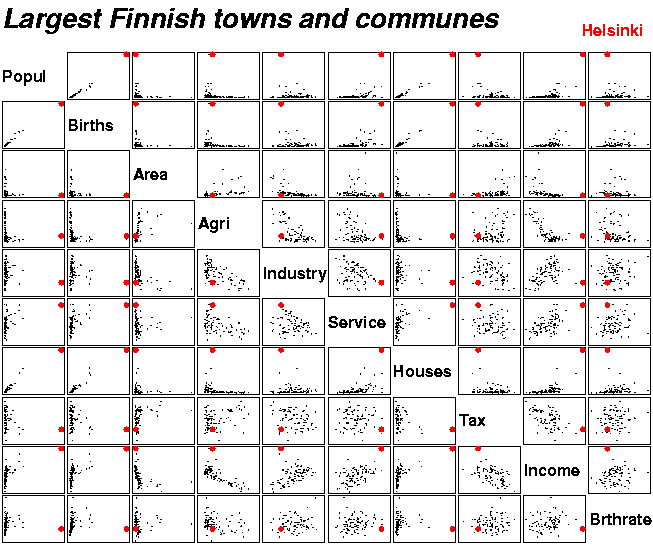

Scatter plot matrix (draftman's display)

S.Mustonen, Survo Users' Guide (1992), p. 297

Edit field:

   1 *
   2 * *GLOBAL*
   3 *
   4 *MASK=--AAAAAAAAAA     IND=Popul,10000,500000   SIZE=1800,1500
   5 *XDIV=0,1,0 YDIV=0,10,1 TYPE=DRAFTS PEN=[SwissB(12.6)][move(0,0)]
   6 *.......................................................................
   7 *Plotting the whole data (specifying scalings and jittering):
   8 *PLOT FINLAND  / OUTSCALE=SCALES.TXT JITTER=30 DEVICE=PS,FINLAND1.PS
   9 *HEADER=[SwissBO(21.3)][move(-50,0)],Largest_Finnish_towns_and_communes
  10 *.......................................................................
  11 *Plotting one particular case (red dots on the previous graph):
  12 *PLOT FINLAND  /  INSCALE=SCALES.TXT DEVICE=PS,FINLAND2.PS HEADER=
  13 *CASES=Commune:Helsinki POINT=[RED],0,7
  14 *TEXTS=Commune Commune=Helsinki,1600,1400
  15 *.......................................................................
  16 *Combining the pictures to one PostScript file:
  17 *EPS JOIN EX.PS,FINLAND1.PS,FINLAND2.PS
  18 *
